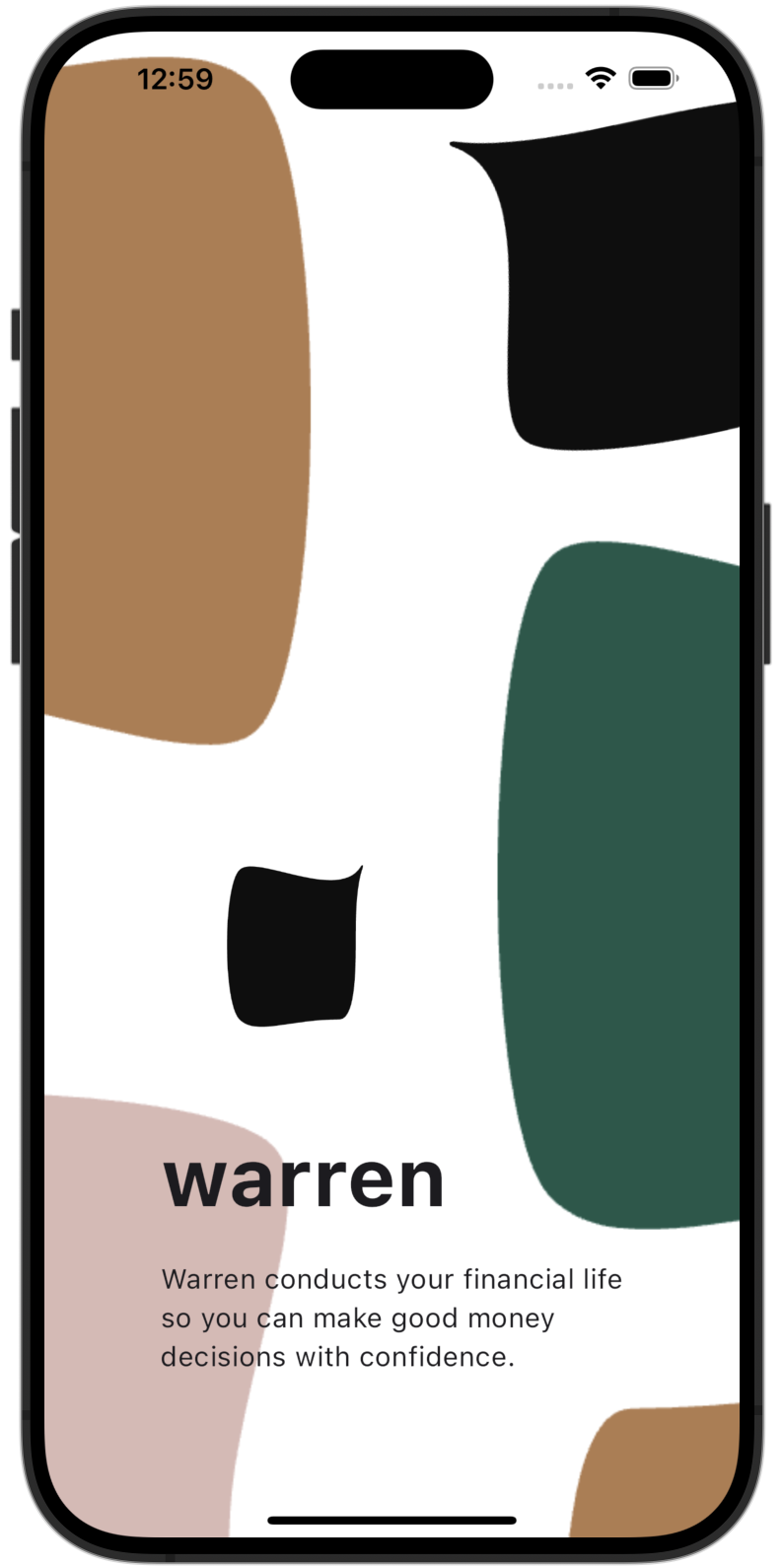

Flutter / Examples / Landing Page1 - some bg shapes *
Landing Page1
-
Steps
UI
Stack & positioned
Column

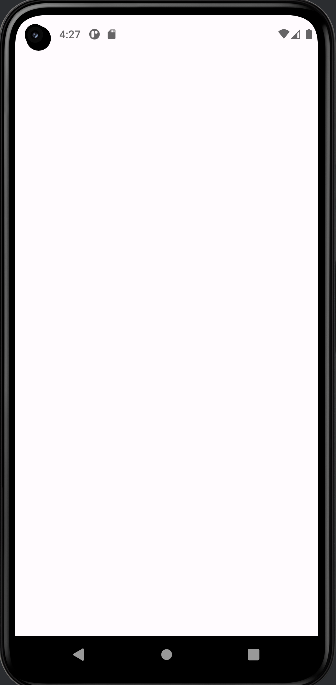

TextStep1: main page
create empty layout with Scaffold

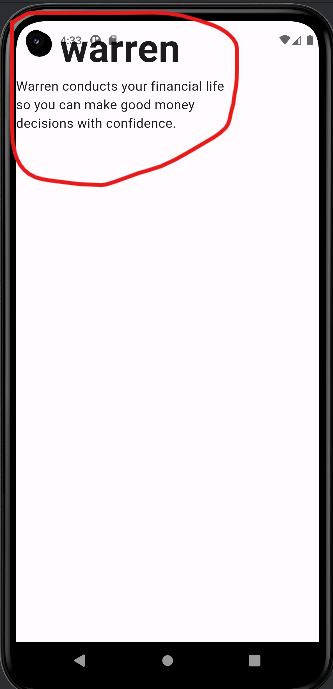

Outputimport 'package:flutter/material.dart'; void main() { runApp(const MyApp()); } class MyApp extends StatelessWidget { const MyApp({super.key}); @override Widget build(BuildContext context) { return MaterialApp( debugShowCheckedModeBanner: false, home: LandingPage(), ); } } class LandingPage extends StatelessWidget{ Widget build(BuildContext context) { return Scaffold( ); } } Step2: Add text to the layout
1. There are 2 lines of text. So use Column layout
2. add the text() elements
Complete codebody: Column( children: [ Text( 'warren', style: TextStyle( fontSize: 50, fontWeight: FontWeight.bold, ), ), Text( 'Warren conducts your financial life\nso you can make good money\ndecisions with confidence.', style: TextStyle( fontSize: 17, ), ), ], )

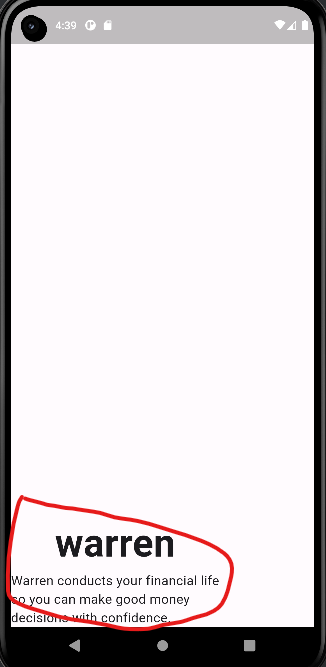

Outputimport 'package:flutter/material.dart'; import 'dart:math'; void main() { runApp(const MyApp()); } class MyApp extends StatelessWidget { const MyApp({super.key}); @override Widget build(BuildContext context) { return MaterialApp( debugShowCheckedModeBanner: false, home: LandingPage(), ); } } class LandingPage extends StatelessWidget{ Widget build(BuildContext context) { return Scaffold( body: Column( children: [ Text( 'warren', style: TextStyle( fontSize: 50, fontWeight: FontWeight.bold, ), ), Text( 'Warren conducts your financial life\nso you can make good money\ndecisions with confidence.', style: TextStyle( fontSize: 17, ), ), ], ) ); } } Step3: Align the text to bottom
add mainAxisAlignment: MainAxisAlignment.end,
Outputbody: Column( mainAxisAlignment: MainAxisAlignment.end, children: [ Text( 'warren', style: TextStyle( fontSize: 50, fontWeight: FontWeight.bold, ), ), Text( 'Warren conducts your financial life\nso you can make good money\ndecisions with confidence.', style: TextStyle( fontSize: 17, ), ), ], ) Step4: Apply bottom margin to the text

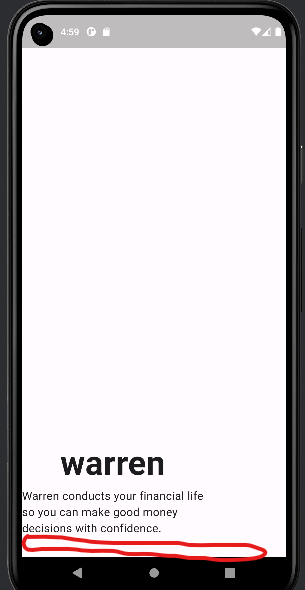

1. Scaffold and Column doesn't have margin property
2. Use Container or Stack for margin
1. add the container layout to the body
2. use the above column code to the "child" propery of container
3. apply margin propery to the container
Outputreturn Scaffold( body: Container( margin: EdgeInsets.only(bottom: 30.0), child:Column( mainAxisAlignment: MainAxisAlignment.end, children: [ Text( 'warren', style: TextStyle( fontSize: 50, fontWeight: FontWeight.bold, ), ), Text( 'Warren conducts your financial life\nso you can make good money\ndecisions with confidence.', style: TextStyle( fontSize: 17, ), ), ], ) //column ) //container ); Step5: Apply text align to center

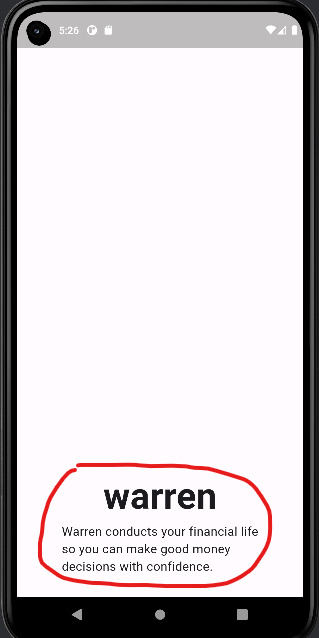

1. add alignment: Alignment.bottomCenter, to the container

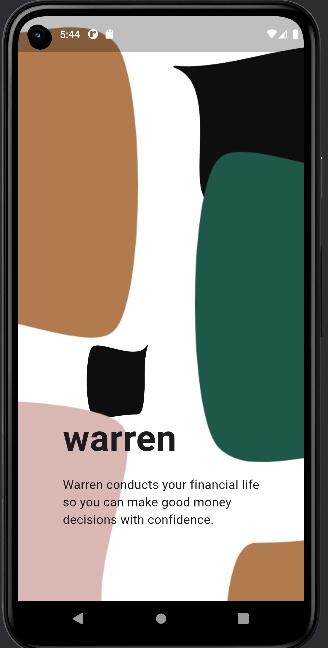

Outputreturn Scaffold( body: Container( margin: EdgeInsets.only(bottom: 30.0), alignment: Alignment.bottomCenter, child:Column( mainAxisAlignment: MainAxisAlignment.end, children: [ Text( 'warren', style: TextStyle( fontSize: 50, fontWeight: FontWeight.bold, ), ), Text( 'Warren conducts your financial life\nso you can make good money\ndecisions with confidence.', style: TextStyle( fontSize: 17, ), ), ], ) //column ) //container ); Step 6: Final Layout
1. add Stack layout
2. add Positioned to the stack layout
3. open pubspec.yaml and add flutter_svg_provider: ^1.0.7 under dependencies:
4. import flutter_svg_provider in the main file
5. save svg image in assets/svgs/
6. enable assets and svg file in pubspec.yaml
Complete code
Outputimport 'package:flutter/material.dart'; import 'dart:math'; import 'package:flutter_svg_provider/flutter_svg_provider.dart'; void main() { runApp(const MyApp()); } class MyApp extends StatelessWidget { const MyApp({super.key}); @override Widget build(BuildContext context) { return MaterialApp( debugShowCheckedModeBanner: false, home: LandingPage(), ); } } class LandingPage extends StatelessWidget{ Widget build(BuildContext context) { return Scaffold( backgroundColor: Colors.white, body: Stack( children: [ // right top black Positioned( top: 20, right: -70, height: 250, child: Transform.rotate( angle: 4.5, child: Image( image: Svg('assets/svgs/svg-path.svg'), color: StoreColors.darkTeal, ), ), ), // left side orangeish Positioned( top: 5, left: -205, height: 450, child: Transform.rotate( angle: pi, child: Image( image: Svg('assets/svgs/svg-path.svg'), color: StoreColors.darkBrown, ), ), ), // Right side dark green Positioned( bottom: 180, right: -220, height: 450, child: Transform.rotate( angle: 2 * pi, child: Image( image: Svg('assets/svgs/svg-path.svg'), color: StoreColors.darkGreen, ), ), ), Positioned( child: Align( alignment: Alignment.center, child: Transform.rotate( angle: 2 * pi, child: Padding( padding: const EdgeInsets.only(top: 200, right: 120), child: Image( height: 100, width: 90, image: Svg('assets/svgs/svg-path.svg'), color: StoreColors.darkTeal, ), ), ), ), ), // Right bottom corner side dark orange Positioned( bottom: -340, right: -240, height: 450, child: Transform.flip( flipX: true, flipY: true, child: Image( image: Svg('assets/svgs/svg-path.svg'), color: StoreColors.darkBrown, ), ), ), // left bottom corner side // some unknown color name haha Positioned( bottom: -130, left: -250, height: 450, child: Transform.rotate( angle: pi * 0.5, child: Image( image: Svg('assets/svgs/svg-path.svg'), color: StoreColors.ligthPink, ), ), ), Positioned.fill( bottom: 100, child: Align( alignment: Alignment.bottomCenter, child: Column( mainAxisAlignment: MainAxisAlignment.end, crossAxisAlignment: CrossAxisAlignment.start, children: [ Text( 'warren', style: TextStyle( fontSize: 50, fontWeight: FontWeight.bold, ), ), SizedBox(height: 15), Text( 'Warren conducts your financial life\nso you can make good money\ndecisions with confidence.', style: TextStyle( fontSize: 17, ), ), ], ), ), ) ], )); } } class StoreColors { static final darkTeal = Color.fromRGBO(14, 14, 14, 1); static final darkBrown = Color.fromRGBO(178, 123, 78, 1); static final darkGreen = Color.fromRGBO(29, 88, 73, 1); static final ligthPink = Color.fromRGBO(217, 184, 180, 1); static final red = Color.fromRGBO(204, 53, 51, 1); static final lightGrey = Color.fromRGBO(246, 245, 244, 1); }
